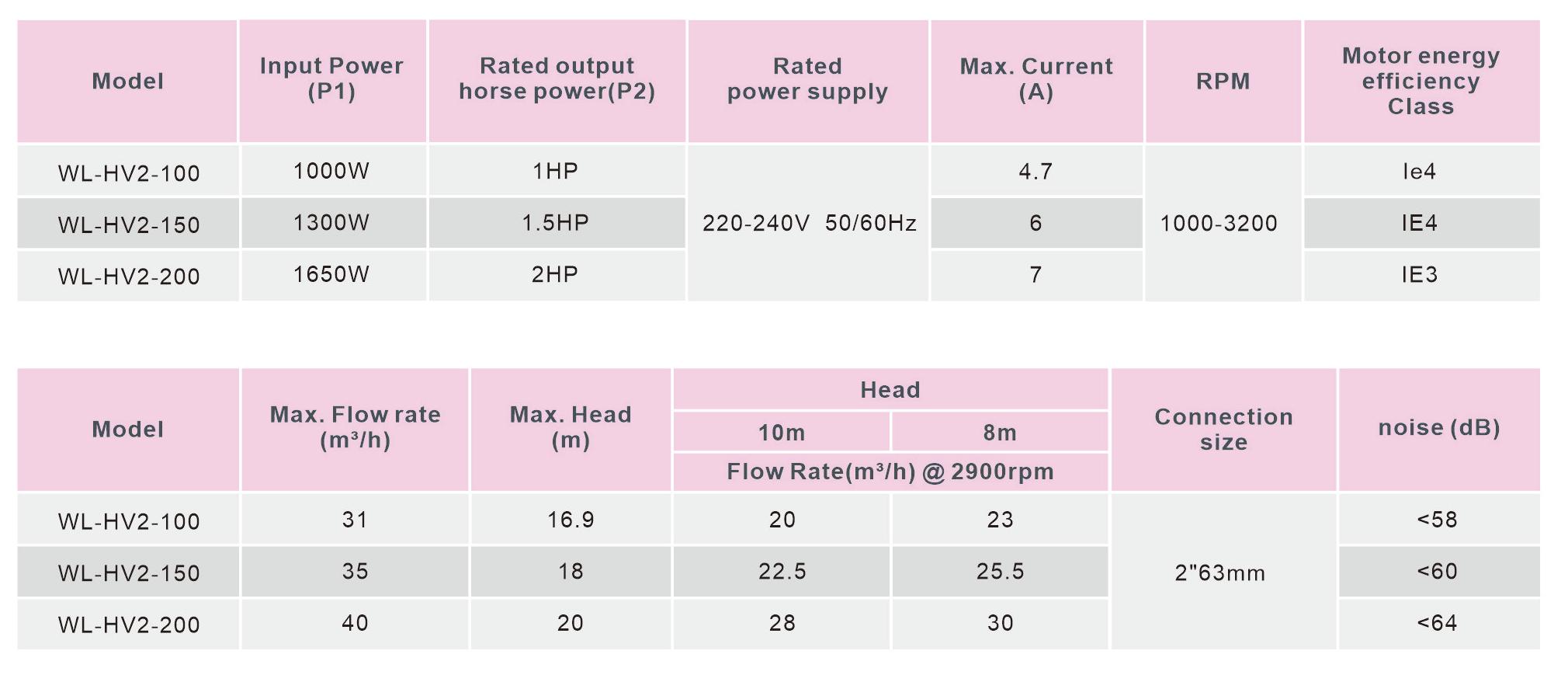

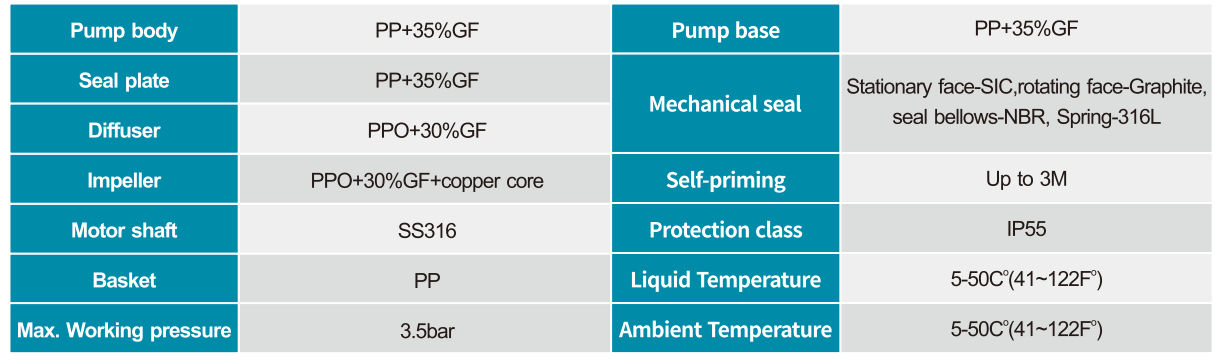

Specifications
Overview Features

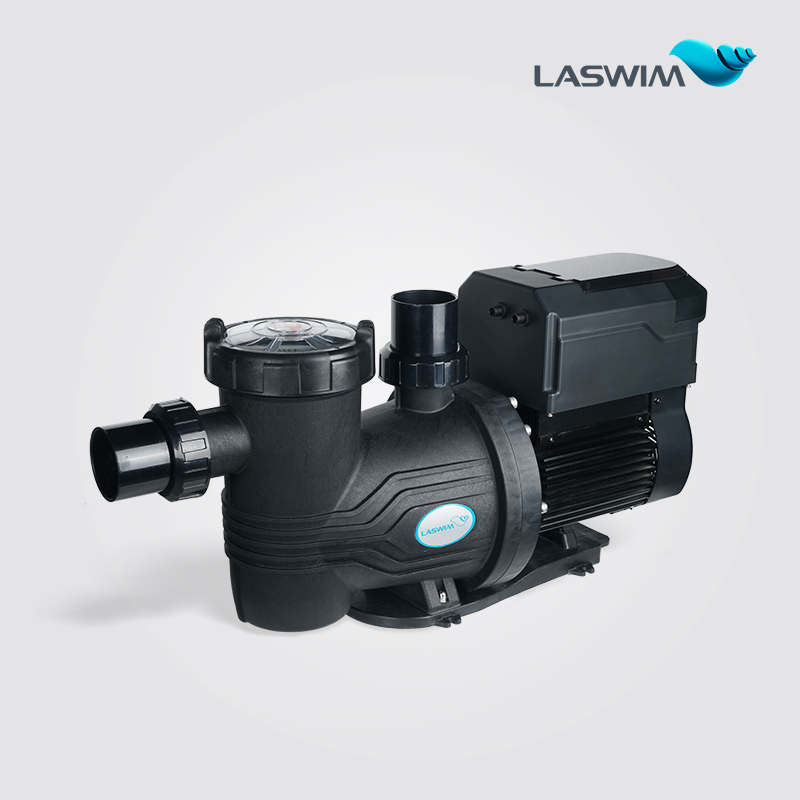

- IE4 Energy-Efficient Motor
The high-performance IE4 motor delivers stable and efficient operation with greater flow and higher head, ideal for both residential and commercial pool circulation. - Ultra-Quiet Operation
Operates at 45 dB at 1500 RPM, suitable for indoor or noise-sensitive environments. - Energy Saving
Reduces energy consumption by up to 90%, saving up to 12,614 kWh per year (2 HP pump running continuously). - Advanced Hydraulic Performance
Supports self-priming up to 3 meters with high head and large flow rate for efficient water circulation. - Smart Control System
Wi-Fi connectivity with Tuya Smart App, OTA upgrades, RS485 and dry contact interface.
One-operate-one-standby function with auto switch, fault detection, and 24/7 stable operation.
Programmable with 4 pre-set speeds and timer settings. - Built-In Protection Features
Includes temperature sensor for overheating and antifreeze protection, pressure probe for flow monitoring, and dry run protection. - Low Maintenance and Flexible Installation

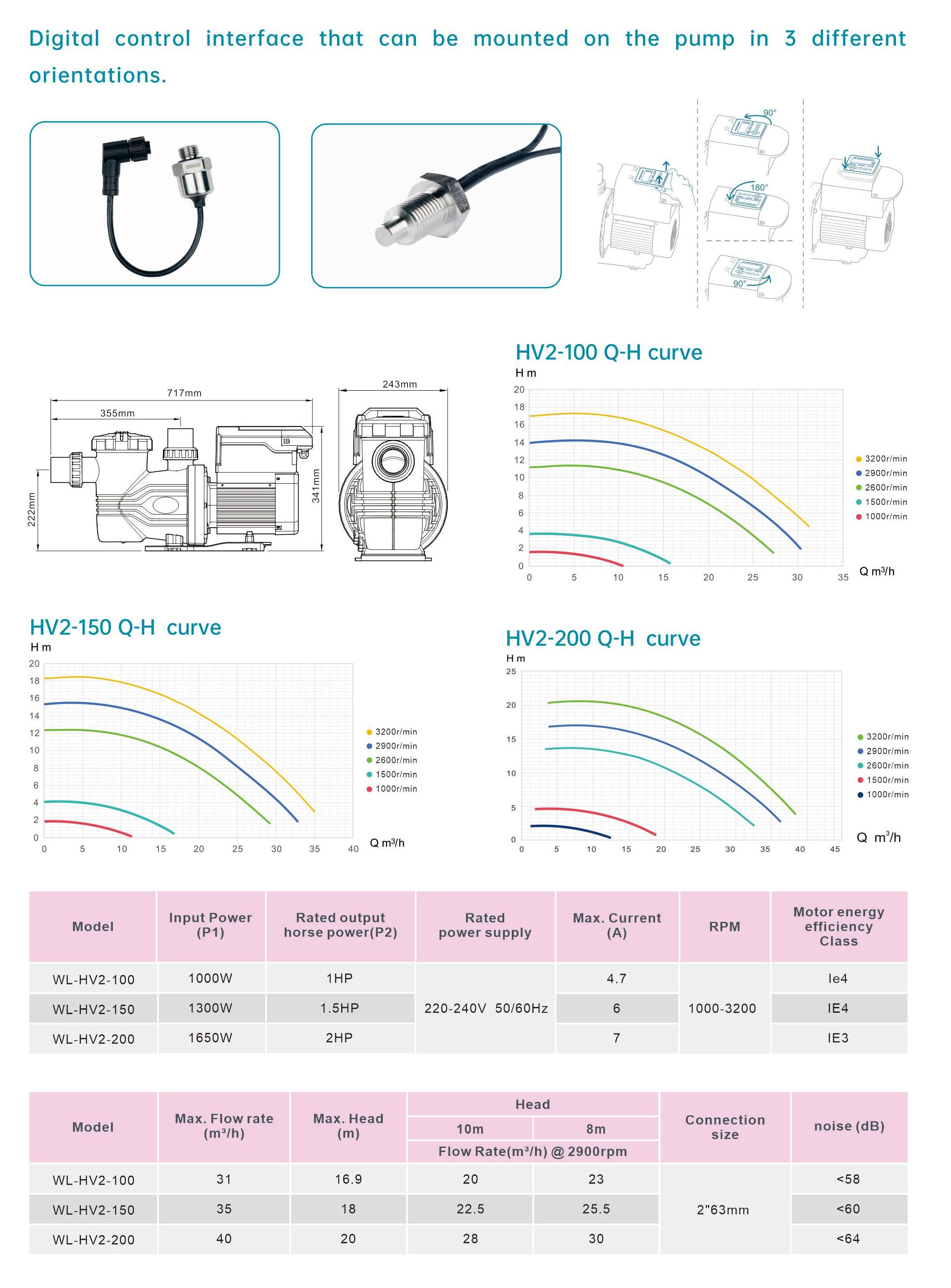

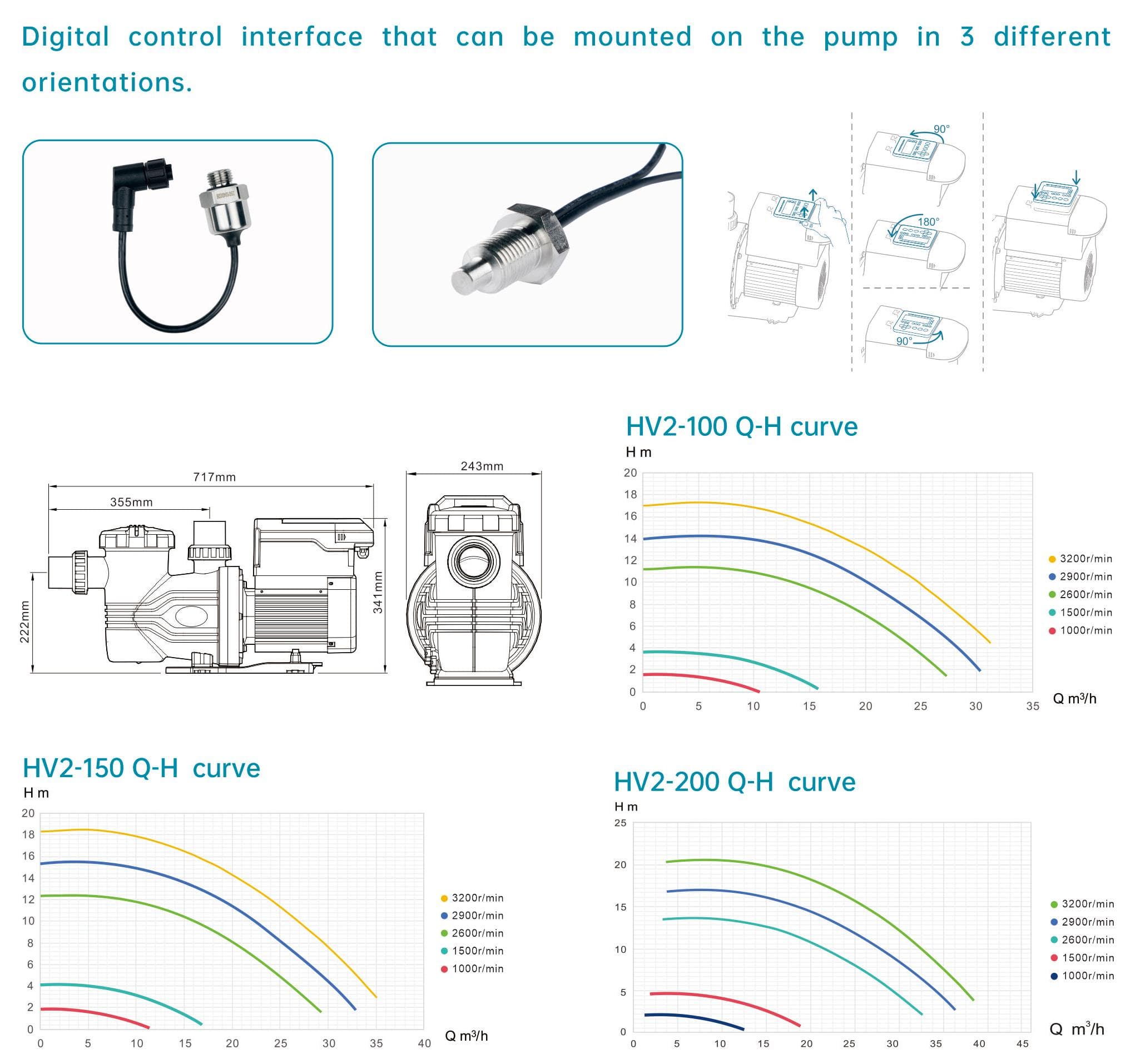

Digital control interface can be mounted in three orientations for easy access and integration.
Parts Diagram Details
