ABOUT LASWIM
Quick Facts
- 30+ Years Industry Experience
- 90,000㎡ Manufacturing Base
- 600+ Employees
- 300+ Quality Equipment
- 100,000+ Projects Worldwide
- 60+ Countries Served
- 8 National Pool Standards Participated
Smarter Water Solutions Since 1989
Founded in 1989, LASWIM is one of China’s leading manufacturers of swimming pool and water treatment equipment, dedicated to providing innovative solutions for residential pools, commercial pools, aquaculture, and water environment projects worldwide.
With over 30 years of industry experience, LASWIM operates a modern manufacturing base covering more than 90,000㎡, equipped with advanced production lines, automated testing systems, and strict quality control processes to ensure reliable and high-performance products.
Our product portfolio covers complete pool and water treatment solutions, including pool pumps, filters, salt chlorinators, underwater lights, heat pumps, integrated filtration systems, and commercial water treatment equipment.
Today, LASWIM products are exported to more than 60 countries and regions, serving customers across Europe, North America, Australia, the Middle East, Southeast Asia, South America, and Africa.
Driven by continuous innovation and customer-focused service, LASWIM remains committed to delivering smarter, safer, and more efficient water solutions for global markets.
Specifications

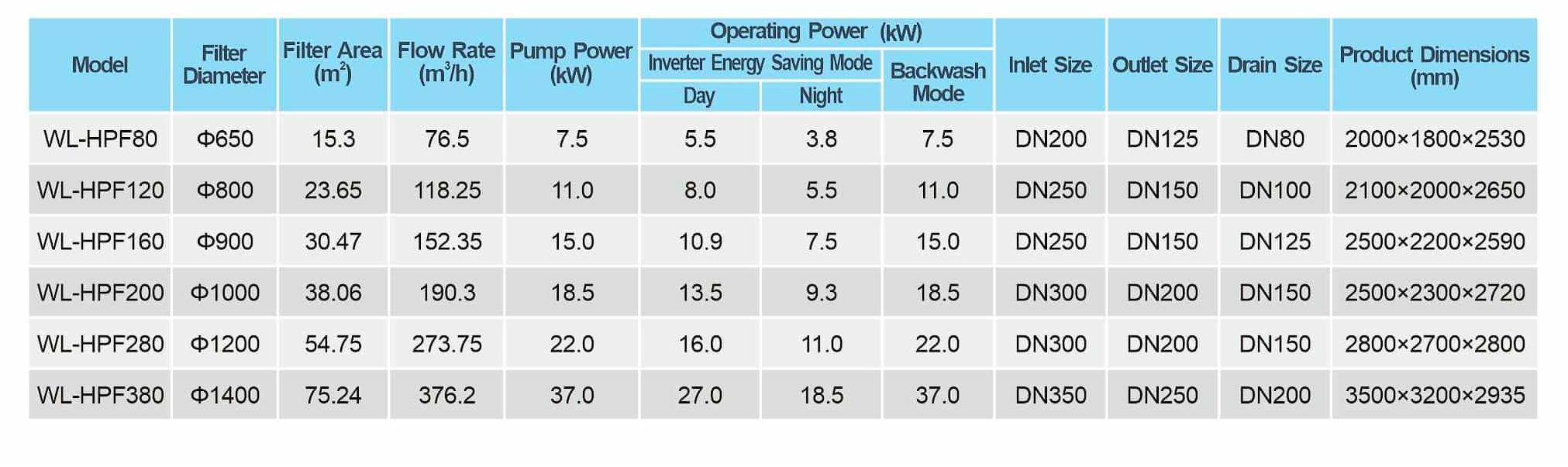

Technical Specifications – Type I · Small-Diameter Filter Element
| Model | Filter Diameter | Filter Area (m²) | Flow Rate (m³/h) | Pump Power (kW) | Operating Power – Energy-Saving Mode / Day (kW) | Operating Power – Energy-Saving Mode / Night (kW) | Backwash Mode (kW) | Inlet Size | Outlet Size | Drain Size | Product Dimensions (mm) |
| WL-HPF650S | Φ650 | 28.56 | 43–98 | 7.5 | 6.4 | 4.5 | 7.5 | DN200 | DN125 | DN80 | 1900 × 1800 × 2220 |
| WL-HPF800S | Φ800 | 44 | 66–150 | 11 | 9.4 | 6.6 | 11 | DN250 | DN150 | DN80 | 2200 × 2100 × 2290 |
| WL-HPF900S | Φ900 | 57.12 | 86–195 | 15 | 12.9 | 9 | 15 | DN250 | DN200 | DN80 | 2700 × 2400 × 2350 |
| WL-HPF1000S | Φ1000 | 72.17 | 108–247 | 18.5 | 15.9 | 11.1 | 18.5 | DN300 | DN200 | DN100 | 2800 × 2500 × 2490 |
| WL-HPF1200S | Φ1200 | 104.59 | 157–358 | 30 | 25.7 | 18 | 30 | DN300 | DN250 | DN150 | 3450 × 2900 × 2568 |
| WL-HPF1400S | Φ1400 | 144.34 | 217–494 | 37 | 31.7 | 22.2 | 37 | DN350 | DN250 | DN150 | 3450 × 3100 × 2713 |
Technical Specifications – Type II · Large-Diameter Filter Element
| Model | Filter Diameter | Filter Area (m²) | Flow Rate (m³/h) | Pump Power (kW) | Operating Power – Energy-Saving Mode / Day (kW) | Operating Power – Energy-Saving Mode / Night (kW) | Backwash Mode (kW) | Inlet Size | Outlet Size | Drain Size | Product Dimensions (mm) |
| WL-HPF650 | Φ650 | 15.3 | 46–77 | 5.5 | 4 | 3.3 | 5.5 | DN200 | DN125 | DN80 | 1900 × 1800 × 2220 |
| WL-HPF800 | Φ800 | 23.65 | 71–118 | 11 | 8 | 6.6 | 11 | DN250 | DN150 | DN80 | 2200 × 2100 × 2290 |
| WL-HPF900 | Φ900 | 30.47 | 91–152 | 11 | 8 | 6.6 | 11 | DN250 | DN150 | DN80 | 2200 × 2200 × 2350 |
| WL-HPF1000 | Φ1000 | 38.06 | 114–190 | 15 | 12.9 | 9 | 15 | DN300 | DN200 | DN100 | 2800 × 2500 × 2490 |
| WL-HPF1200 | Φ1200 | 54.75 | 173–274 | 22 | 18.9 | 13.2 | 22 | DN300 | DN200 | DN150 | 2800 × 2700 × 2568 |
| WL-HPF1400 | Φ1400 | 75.24 | 226–376 | 30 | 25.7 | 18 | 30 | DN350 | DN250 | DN150 | 3450 × 3100 × 2713 |

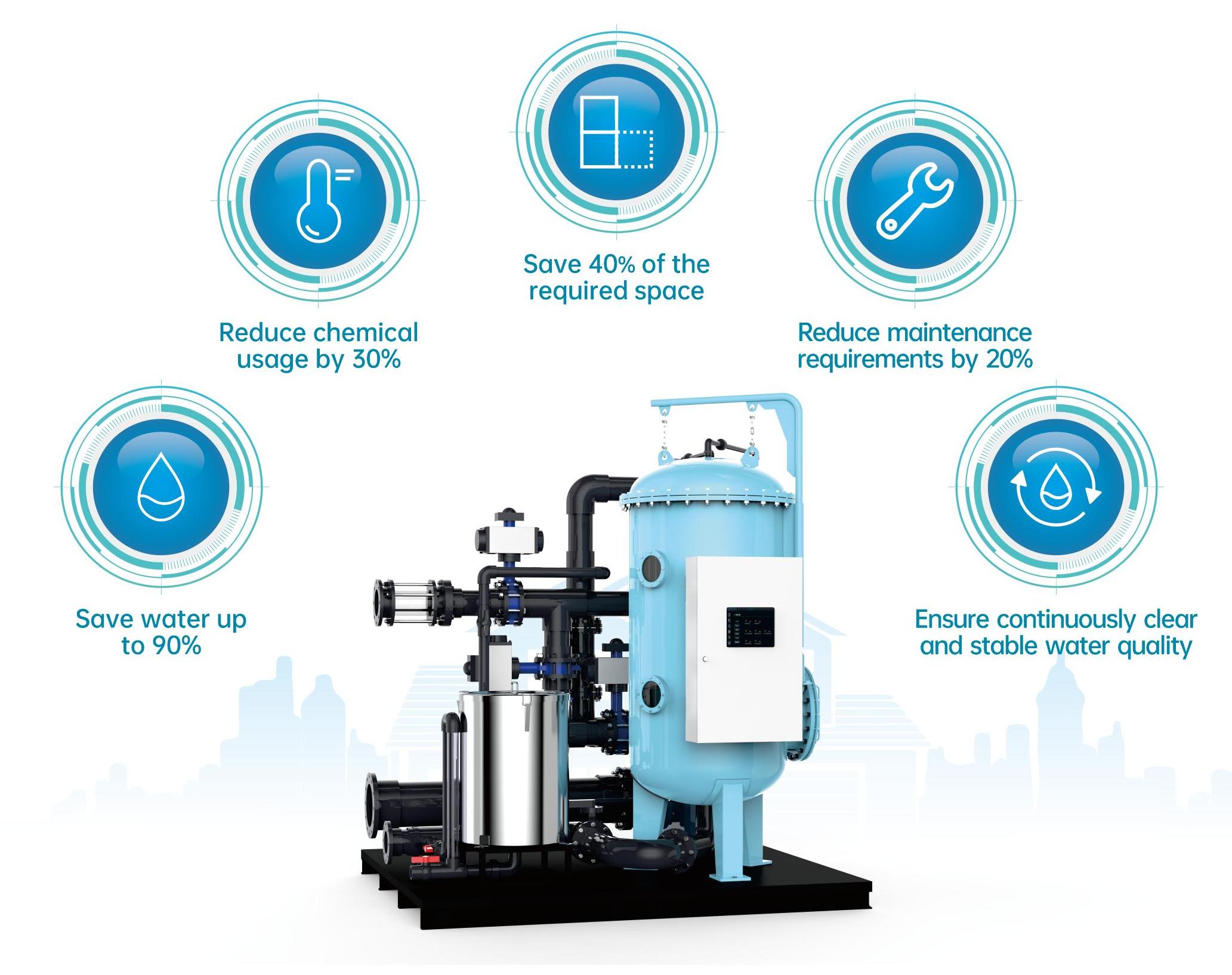

Key Performance Advantages
- Reduce chemical usage by up to 30%
- Save up to 40% of required equipment space
- Reduce maintenance requirements by up to 20%
- Save up to 90% of water
- Ensure continuous and stable water quality
- Deliver consistently clear and high-quality water
Special Advantages
High-Precision Filtration for Ultra-Clean Water

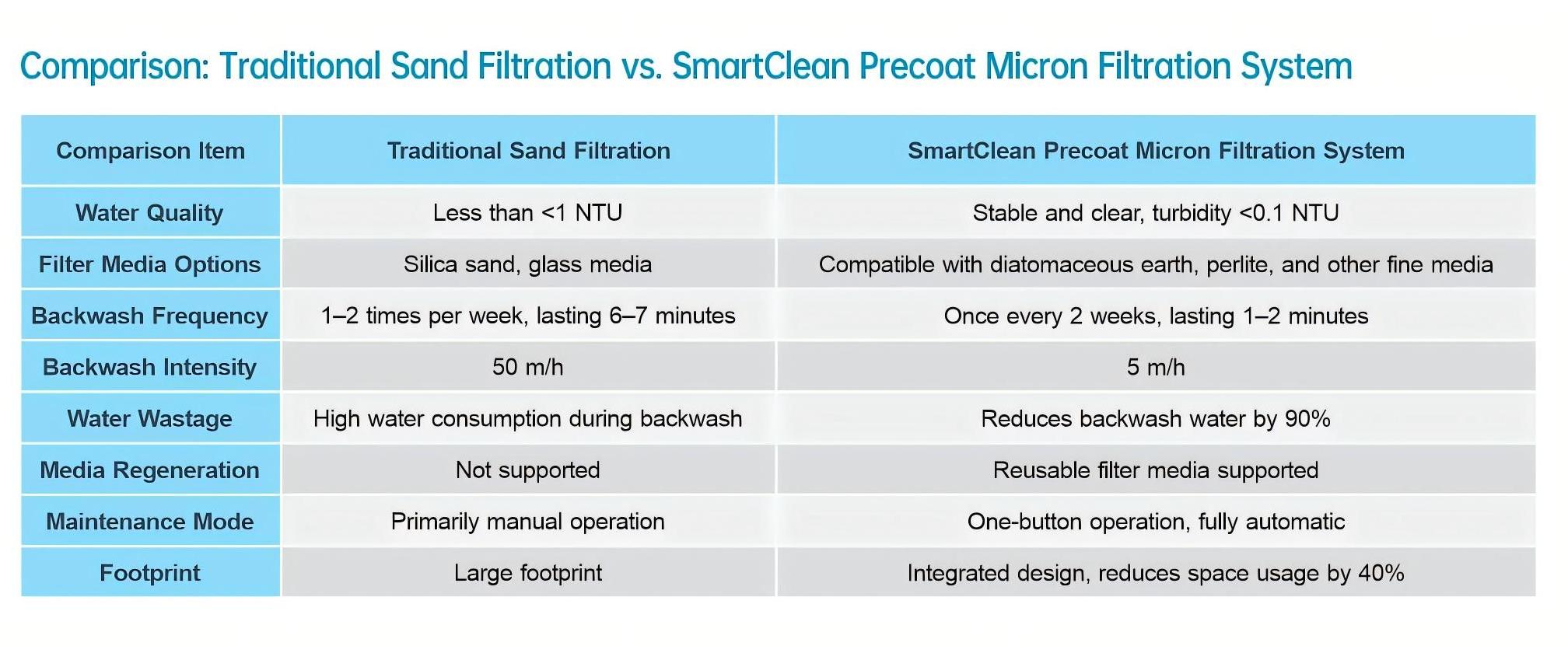

Uses DE precoat technology to achieve 1-3μm filtration with over 99% particle removal. Effluent turbidity <0.1NTU, vastly superior to sand filters.
Regenerable Filter Media for Eco-Friendly Operation
Supports reuse of DE and perlite, reducing replacement frequency and backwash water. Saves costs and promotes sustainability.
Smart Load Adjustment for Enhanced Durability
Automatically adjusts operation based on water quality and flow, optimizing energy use and extending filter media life.
Water Hammer Protection for System Safety
The soft starting/stopping technology prevents water hammer impact, protecting equipment and piping, and enhancing system stability and longevity.
Intelligent Control System for Easy Operation
Integrated PLC system allows one-touch switching between precoat, filtration, and regeneration modes. Fully automated, no manual monitoring required.
Highly Integrated Design for Space Efficiency
Combines pump, dosing tank, filter, and control system into a compact unit. Takes up only half
the space of traditional systems for faster installation.
Ultra-Quiet Performance for Comfortable Environments
Features a 4-pole low-noise pump and optimized flow design for noise reduction – ideal for high-end hotels and clubs.
Multi-Media Compatibility for Greater Flexibility
Works with a variety of filter media including DE and perlite, allowing flexible adaptation to different pool and spa water treatment needs.

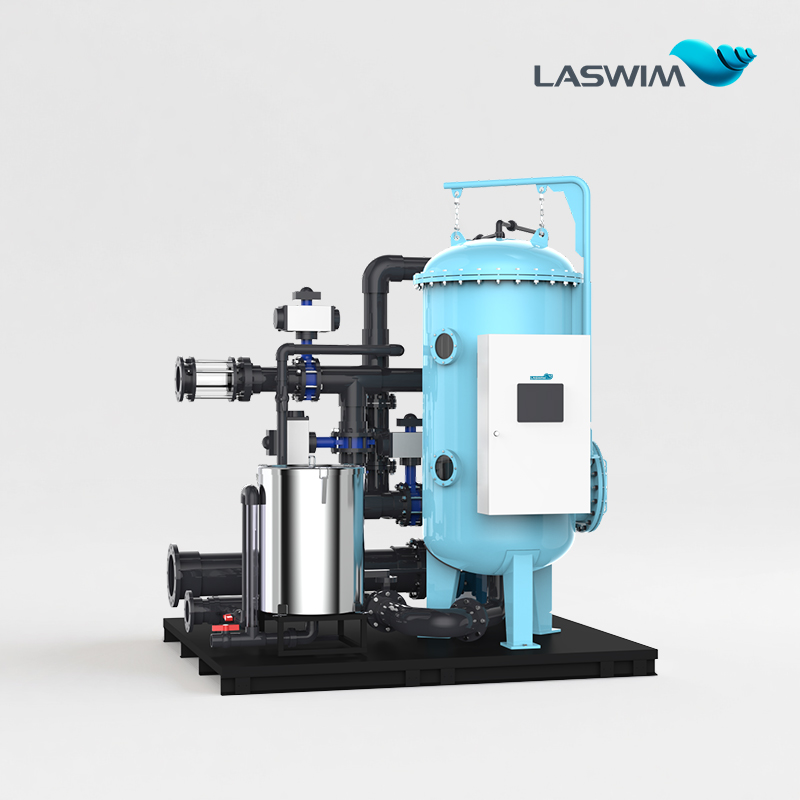

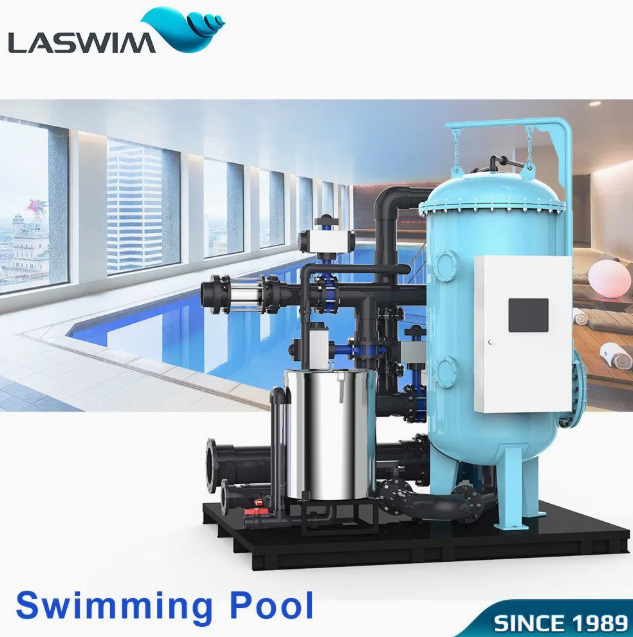

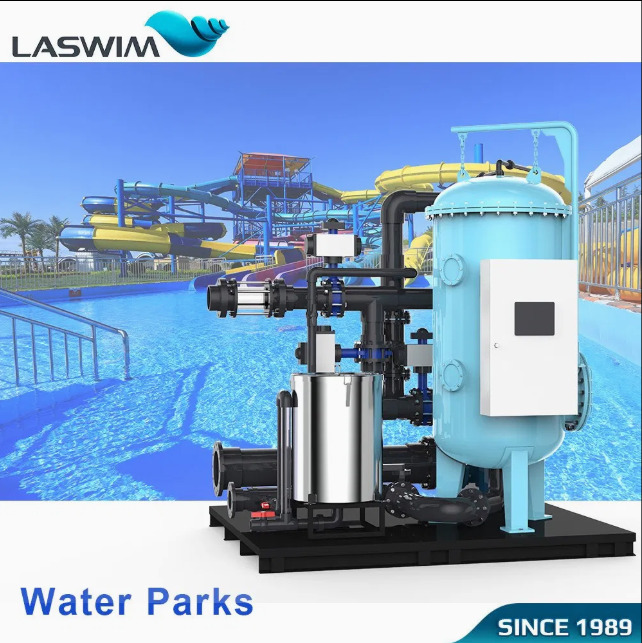

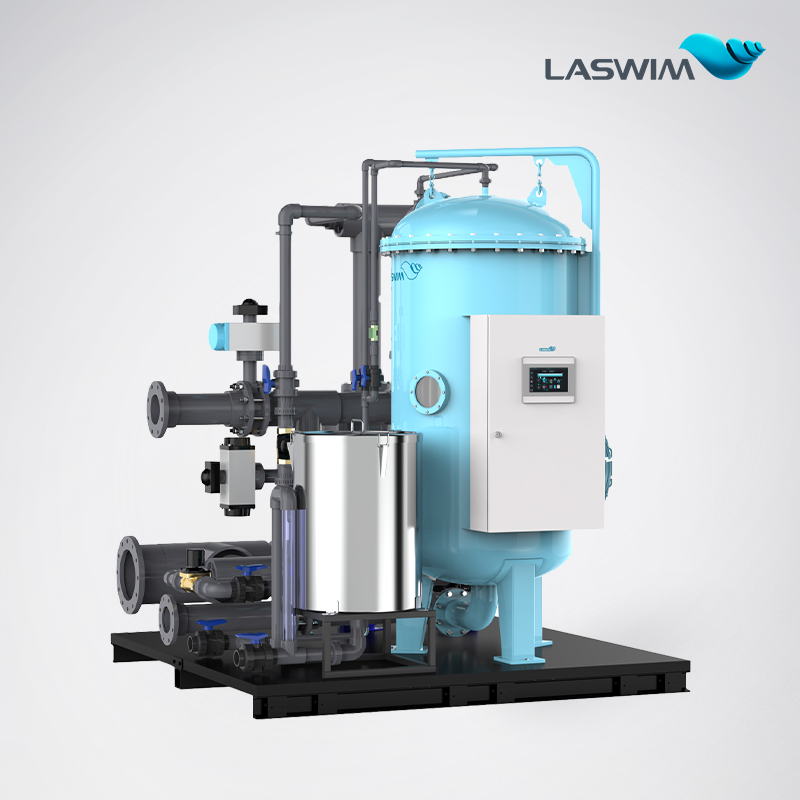

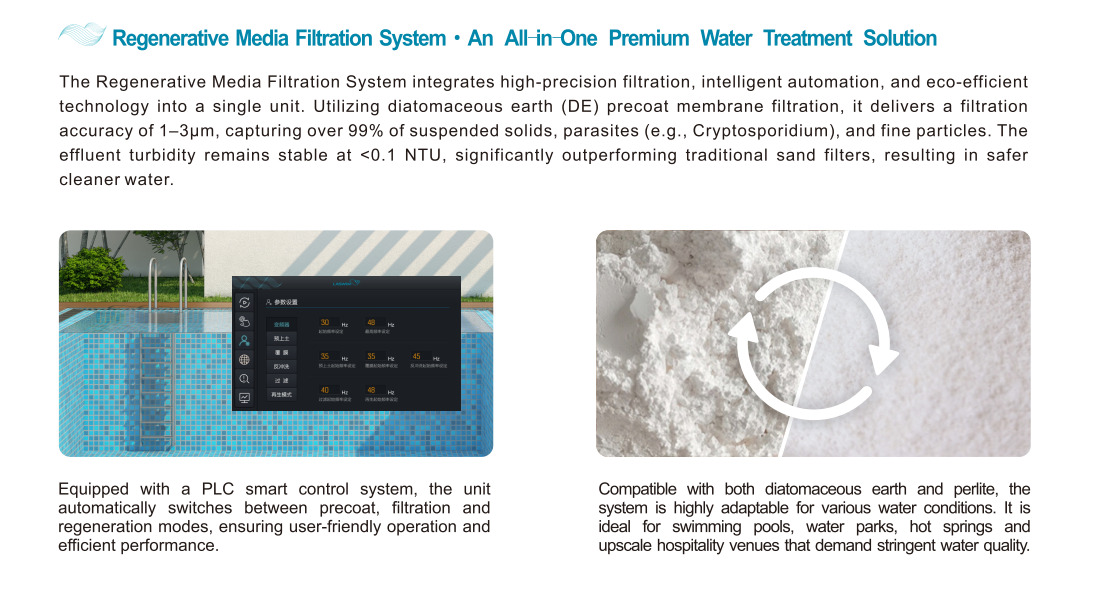

Regenerative Media Filtration System – An All-in-One Premium Water Treatment Solution
High-Precision Filtration
Utilizing diatomaceous earth (DE) precoat membrane filtration technology, the system delivers 1–3 μm filtration accuracy and captures over 99% of suspended solids, parasites (e.g., Cryptosporidium), and fine particles. Effluent turbidity remains stable at <0.1 NTU, delivering cleaner and safer water.
Intelligent PLC Control
Equipped with a PLC-based smart control system, the unit automatically switches between precoat, filtration, and regeneration modes, reducing manual operation and ensuring efficient, stable system performance.
Flexible Filter Media Compatibility
Compatible with both diatomaceous earth (DE) and perlite, providing strong adaptability to different water conditions and filtration requirements.
Wide Range of Applications

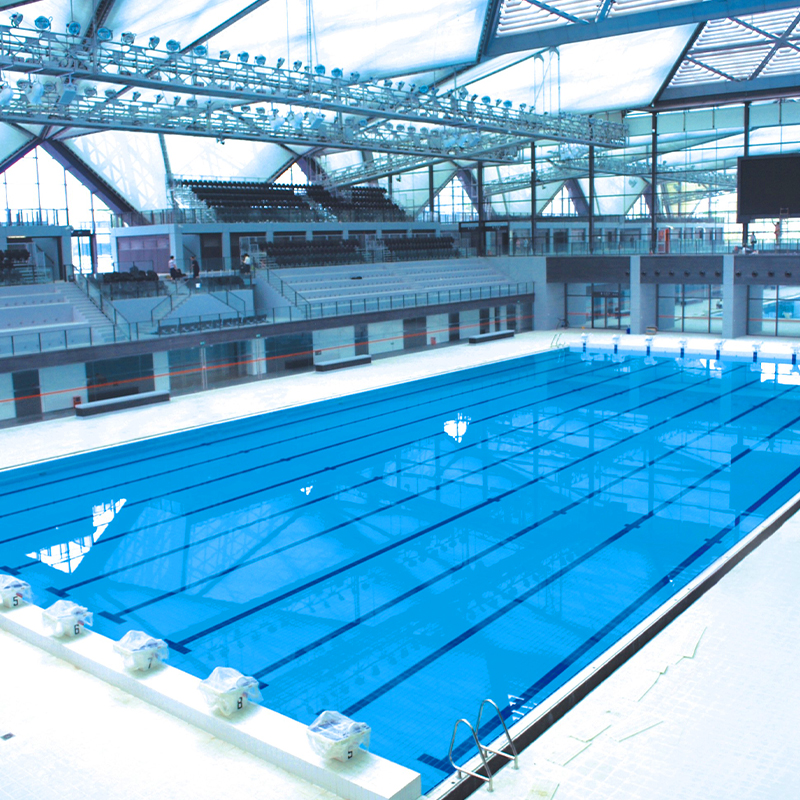

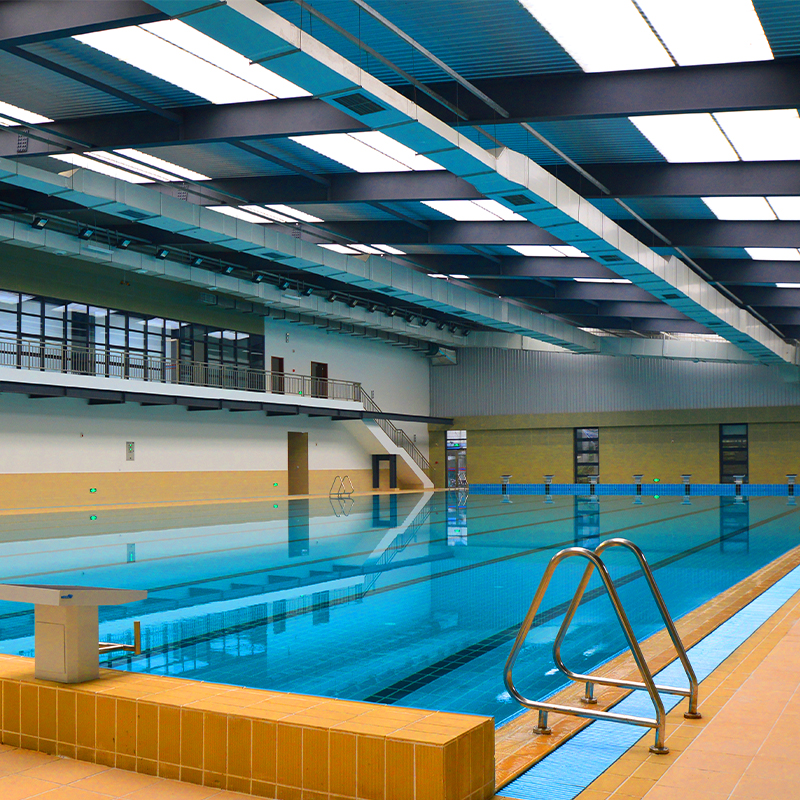

Ideal for swimming pools, water parks, hot springs, and upscale hospitality venues where high water quality and reliable filtration performance are required.
